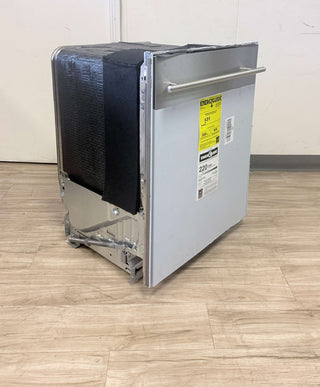

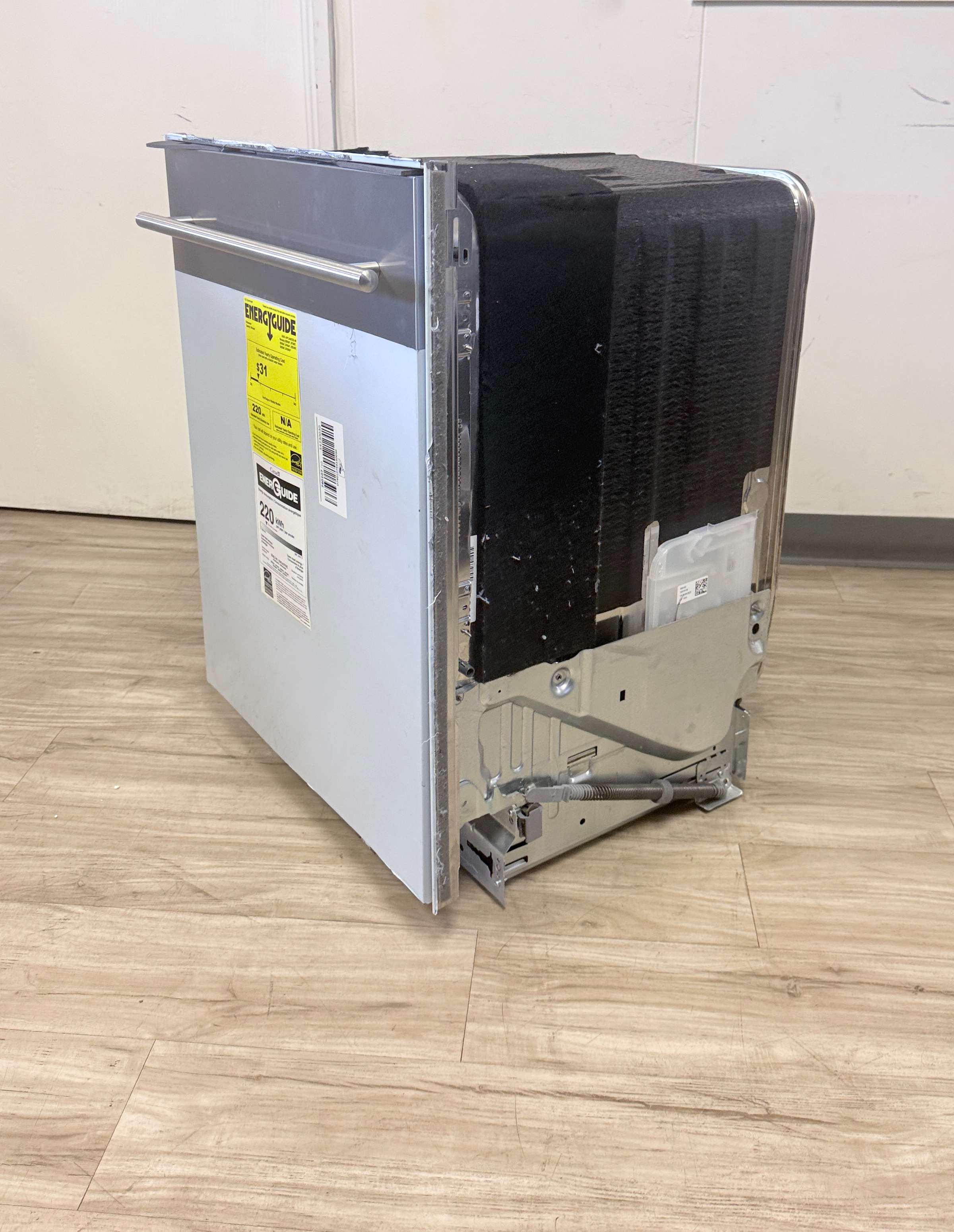

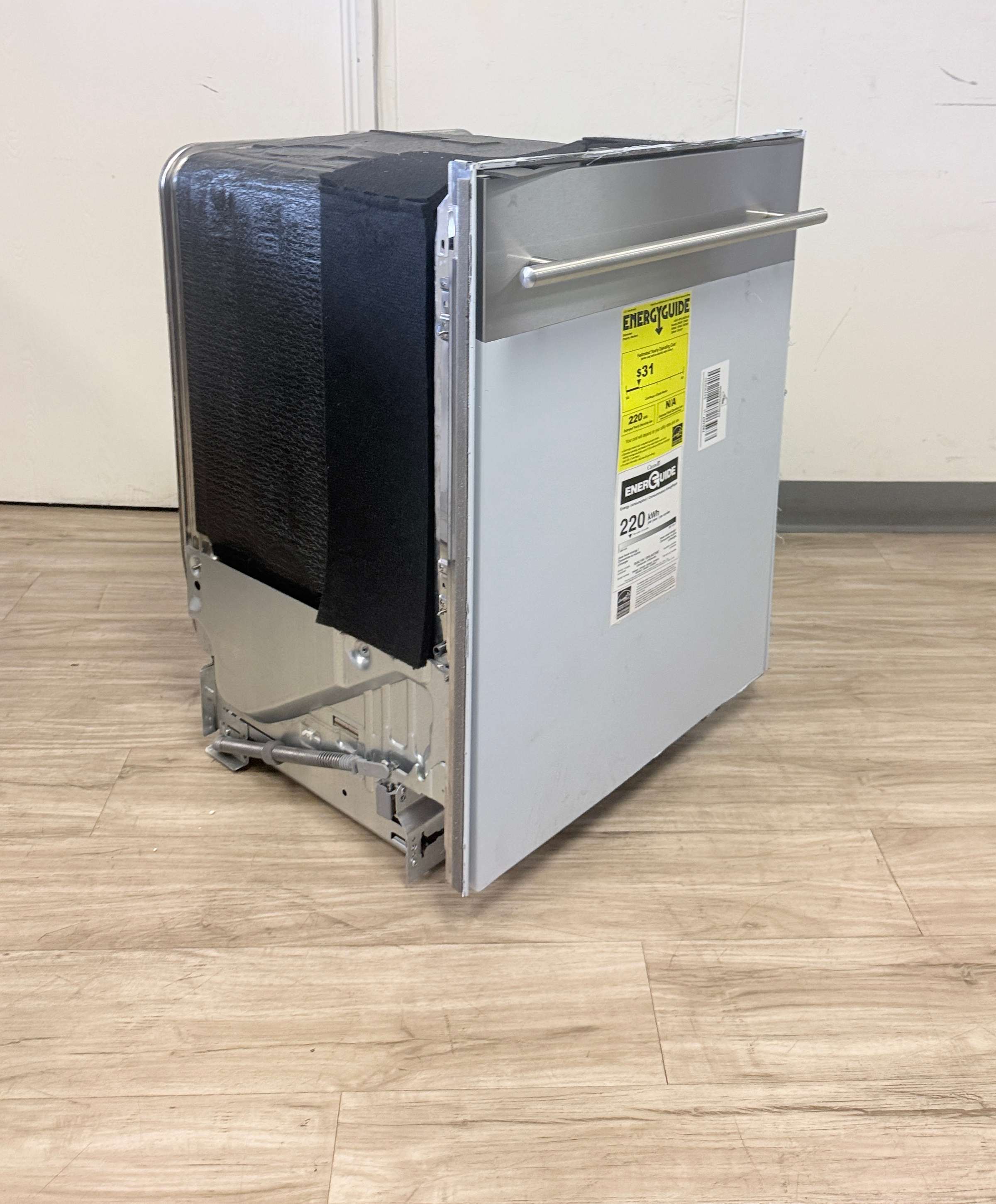

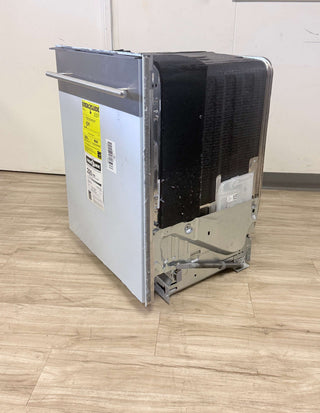

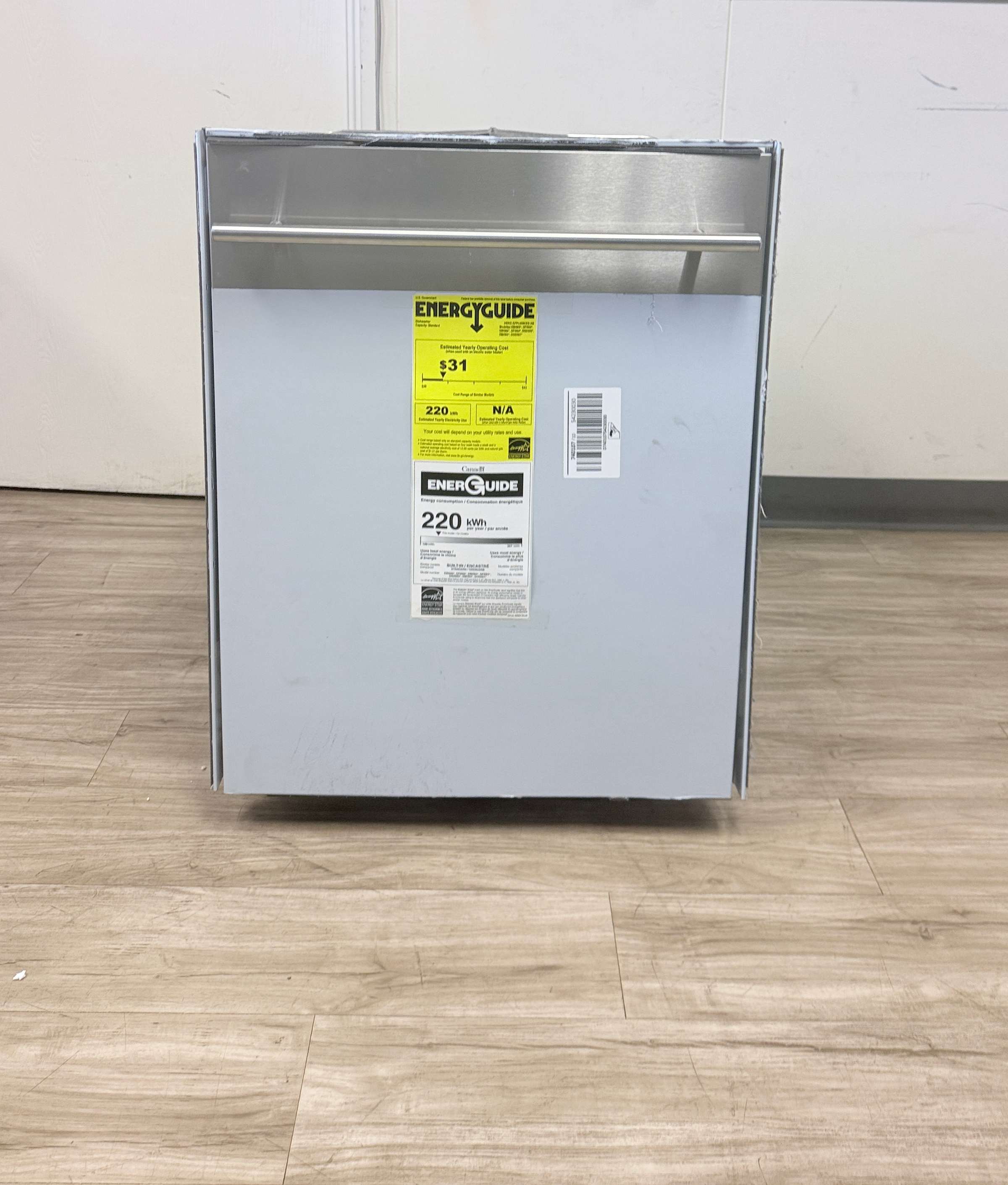

ASKO DBI564TS 24" Built-In Dishwasher in Stainless Steel - Open Box

CLEANING PERFORMANCE
• Super Cleaning System+™: Cleans the dishwasher interior and filtration area before the main wash begins, helping provide clean wash conditions without requiring dishes to be thoroughly pre-rinsed.
• Three Spray Arms: Provides water coverage across all three loading levels for dishes, glassware, utensils, and cookware.
• Nine Spray Zones: Distributes wash water throughout the tub for targeted cleaning across different rack areas.
• Adaptable Power Zones: Dedicated wash areas can provide stronger cleaning for items such as pots and pans or bottles and vases.
• Cutlery Power Zone: Directs additional washing power toward the cutlery basket to help remove stubborn food residue from utensils.
• Aqua Level™ Sensor: Helps manage water levels throughout the selected wash program.

DRYING PERFORMANCE
• Turbo Combi Drying™: Combines active Turbo Drying with natural room-air drying for improved drying performance.
• Automatic Door Opening: Opens the dishwasher door near the end of compatible cycles so residual moisture can escape.
• Active + Natural Drying: The drying system begins mechanically and then uses dry indoor air to help complete the process.

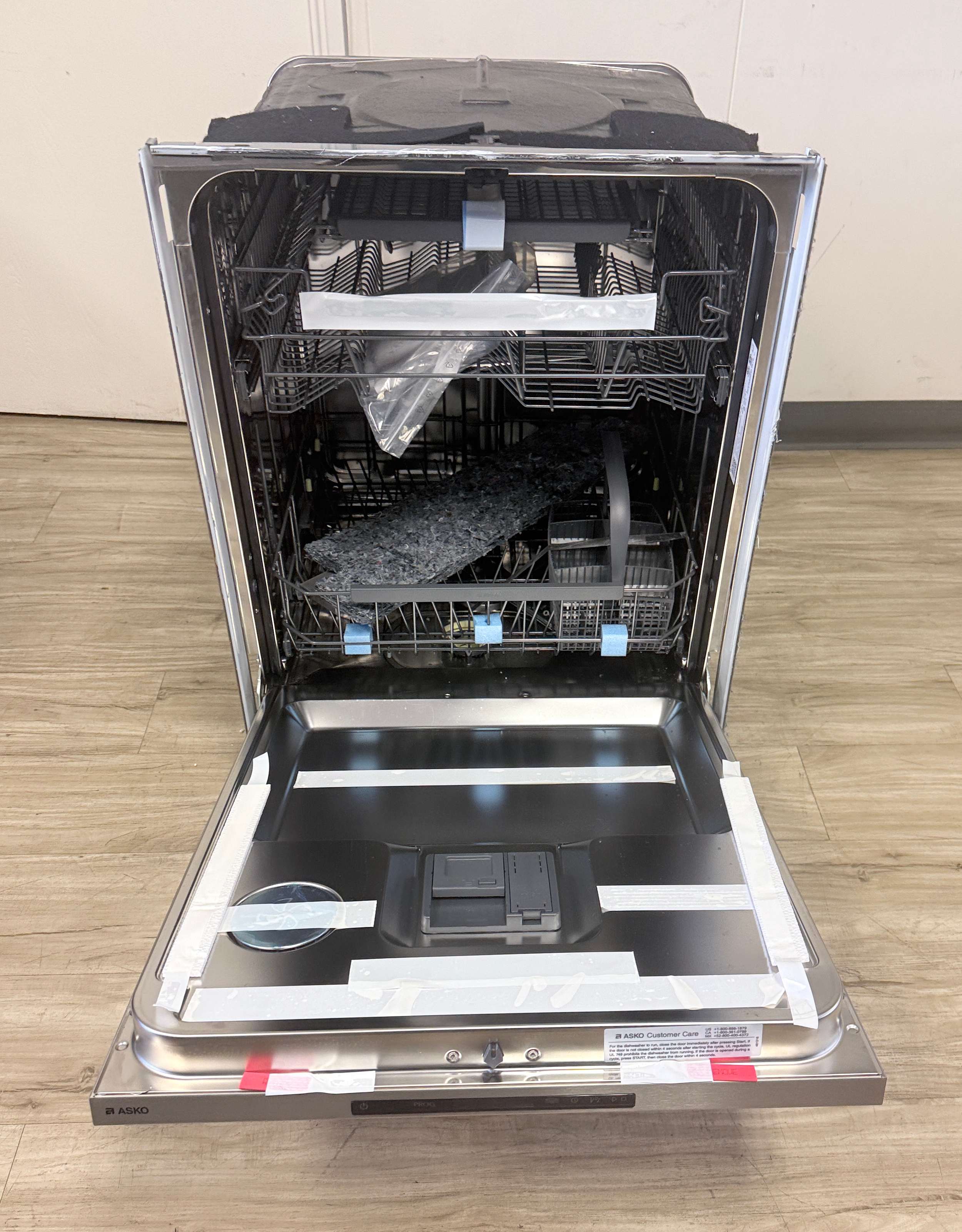

THREE-LEVEL LOADING
• 16 Place Setting Capacity: Provides generous loading space for everyday dishes, serving pieces, cookware, utensils, and entertaining loads.
• Three Loading Levels: Adds a dedicated top tray above the main upper and lower baskets to increase usable loading space.
• Removable Top Tray: Can be removed when additional vertical clearance is required.
• Adjustable Top Tray: Allows its position to be changed to accommodate different utensil and dish sizes.
• Premium Upper & Lower Baskets: Designed to support flexible organization of plates, bowls, glasses, cookware, and specialty items.
• Removable Cutlery Basket: Can be lifted out for convenient loading and unloading of silverware.

PROGRAM FLEXIBILITY
• Normal Wash: Everyday cycle for typically soiled dishes.
• Quick Wash: Provides a shorter cleaning cycle for suitable lightly soiled loads.
• Intensive Program: Designed for more heavily soiled cookware, plates, and dishes.
• Time Program: Allows cleaning to be tailored around a selected operating time.
• Sanitize Program: Provides a dedicated high-temperature program for loads requiring additional sanitation.
• Self-Cleaning Program: Provides a dedicated cycle for cleaning the dishwasher interior.
• Anti-Odor Program: Helps manage odors when dishes remain inside before a full wash is run.
• Rinse & Hold: Rinses dishes when a complete wash cycle will be run later.

PROGRAM MODES
• Speed Mode: Adjusts operation when shorter cycle duration is preferred.
• Night Mode: Optimizes operation for reduced sound when running the dishwasher overnight or near living areas.
• Heat Boost Mode: Increases wash temperature when additional cleaning performance is desired.
• Memory Program: Stores a preferred program configuration for easier repeat use.
• 1–24 Hour Delay Start: Allows the wash cycle to be scheduled for a later time.

QUIET OPERATION
• 42 dBA Sound Rating: Designed for quiet operation suitable for kitchens adjacent to dining and living areas.
• Night Mode: Provides an additional option when lower operating noise is preferred.

DURABILITY & CONSTRUCTION
• 8 Steel™ Construction: ASKO uses stainless steel for eight major dishwasher components where many dishwashers use plastic.
• Welded Stainless-Steel Tub: Provides durable interior construction for repeated hot-water washing.
• Stainless-Steel Spray Components: Stainless-steel spray arms and related components support durability within the wash system.
• Hidden Heater: Keeps the heating component positioned beneath the wash area rather than exposed inside the tub.

WATER PROTECTION
• Aqua Safe™: Multi-component water-protection system designed to help minimize the risk of leakage and water damage.
• Exterior Float Sensor: Detects water collecting in the dishwasher base.
• Standby Water Protection: Continues leak protection while the dishwasher is not actively running.
• Anti-Block Drain Pump: Helps reduce the likelihood of drainage interruptions from debris.
• Integrated Anti-Siphon: Helps prevent unwanted backflow through the dishwasher's plumbing system.

ENERGY & WATER EFFICIENCY
• ENERGY STAR® Certified: The DBI564 family meets ENERGY STAR dishwasher efficiency requirements.
• 3 Gallons per Normal Cycle: Uses approximately 40% less water than the 5-gallon U.S. federal standard referenced by ENERGY STAR.
• 220 kWh Estimated Annual Energy Use: Approximately 28% below the 307 kWh/year federal reference level listed by ENERGY STAR.
• Automatic Door Release Drying: Helps complete drying using room air rather than relying entirely on prolonged heating.

• Brand: ASKO
• Model: DBI564TS
• Product Type: Built-In Undercounter Dishwasher
• Size Class: 24"
• Installation: Built-In
• Finish: Stainless Steel
• Height Configuration: ADA Height Compliant
• Capacity: 16 Place Settings
• Number of Baskets / Rack Levels: 3
• Interior Construction: Welded Stainless Steel
• Noise Level: 42 dBA
• ENERGY STAR® Certified: Yes

WASH PROGRAMS
• Number of Programs: 9
• Normal Wash
• Quick Wash
• Intensive Program
• Time Program
• Rinse & Hold
• Self-Cleaning
• Light Wash
• Sanitize
• Anti-Odor
• Delay Start: 1–24 Hours

PROGRAM MODES & OPTIONS
• Number of Options: 6
• Speed Mode
• Night Mode
• Heat Boost Mode
• Normal Mode
• Adaptable Power Zones
• Memory Program: Allows a preferred program configuration to be stored
• Time Remaining Indicator: Yes
• Cycle-End Indication: Display, sound and light

WASH SYSTEM
• Super Cleaning System+™: Yes
• Number of Spray Arms: 3
• Number of Spray Zones: 9
• Adaptable Power Zones: Yes
• Cutlery Power Zone: Yes
• Stainless-Steel Spray Arms: Yes
• Aqua Level™ Sensor: Yes
• Hidden Heater: Yes
• Anti-Block Drain Pump: Yes

DRYING SYSTEM
• Drying Technology: Turbo Combi Drying™
• Automatic Door Opening: Yes
• Fan-Assisted Drying: Yes
• Natural Air Drying Assistance: Yes
• Drying Process: Active drying followed by automatic door opening to complete drying with room air

RACKING & LOADING
• Capacity: 16 Place Settings
• Number of Rack Levels: 3
• Top Tray: Removable
• Top Tray Height Adjustment: Yes
• Top Tray Handle: Yes
• Upper Basket: Premium
• Lower Basket: Premium
• Removable Cutlery Basket: Yes
• Tight-Mesh Basket Base: Yes
• Foldable Wine Shelves: Yes
• Standard Knife Stand: Yes
• Foldable / Divisible Rear Pin Row in Lower Rack: Yes

STAINLESS-STEEL CONSTRUCTION
• 8 Steel™ Construction: Yes
• Welded Stainless-Steel Tub: Yes
• Stainless-Steel Loading Racks: Yes
• Stainless-Steel Spray Pipe: Yes
• Stainless-Steel Spray Arms: Yes
• Stainless-Steel Strainers: Yes
• Stainless-Steel Outer Base: Yes
• Stainless-Steel Feet / Structural Components: Yes
• Stainless-Steel Inner Door: Yes

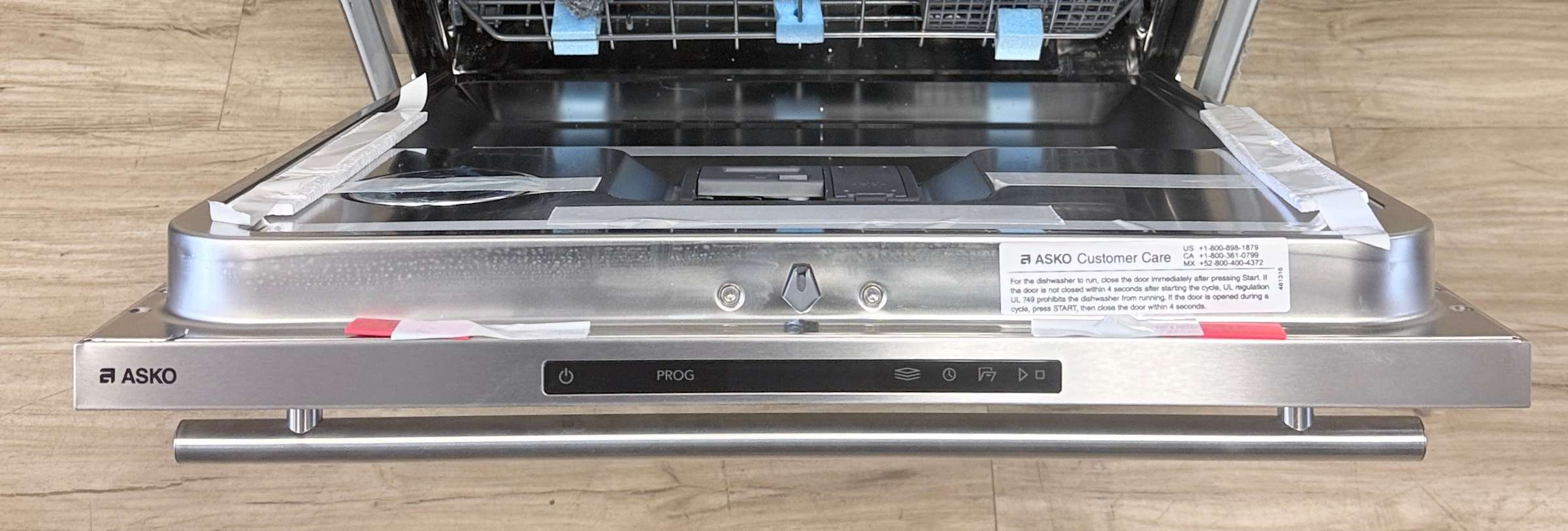

CONTROLS & DISPLAY
• Control Location: Top / Fully Integrated Controls
• Display Type: LCD Display
• Time Remaining Indicator: Yes
• Memory Program: Yes
• Cycle-End Notification: Sound and Light
• Low Rinse-Aid Indicator: Display Notification
• Status Light™: Yes
• Child / Control Lock: Kid Safe™

WATER PROTECTION & SAFETY
• Aqua Safe™ Water Protection System: Yes
• Exterior Base Float: Detects Water Leakage
• Standby Water Protection: Yes
• Anti-Block Drain Pump: Yes
• Integrated Anti-Siphon: Yes
• Kid Safe™ Lockable Controls: Yes

ENERGY & WATER PERFORMANCE
• ENERGY STAR® Certified: Yes
• ENERGY STAR Most Efficient: Listed for the DBI564 family
• Estimated Annual Energy Consumption: 220 kWh/year
• Energy Consumption, Normal Program: 1.0 kWh/cycle
• Water Consumption: 3.0 gallons/cycle
• Estimated Annual Water Consumption: Approximately 647 gallons
• Standby Power Consumption: 0.5 W
• Standard / Normal Program Duration: 125 Minutes

POWER & WATER REQUIREMENTS
• Voltage: 120V
• Frequency: 60 Hz
• Current: 15A
• Connected Load: 1,300 W
• Electrical Phases: 1
• Water Connection: Hot or Cold Water
• Maximum Incoming Water Temperature: 140°F
• Required Inlet Water Pressure: 0.03–1.0 MPa

DIMENSIONS & WEIGHT
• Overall Width: 23 15/16"
• Overall Height: 32 11/16"
• Overall Depth: 21 13/16"
• Maximum Product Height: 34 13/16"
• Depth Including Required Wall Spacing: 21 7/8"
• Height Adjustment Range: 2 1/16"
• Depth with Door Open: 46 7/8"
• Electrical Cord Length: 71 7/16"
• Inlet Hose Length: 64 3/16"
• Drain Hose Length: 90 9/16"
• Net Weight: Approximately 89 lbs.

SHIPPING DIMENSIONS
• Packaging Width: 25 3/16"
• Packaging Height: 35 1/16"
• Packaging Depth: 26 3/4"
